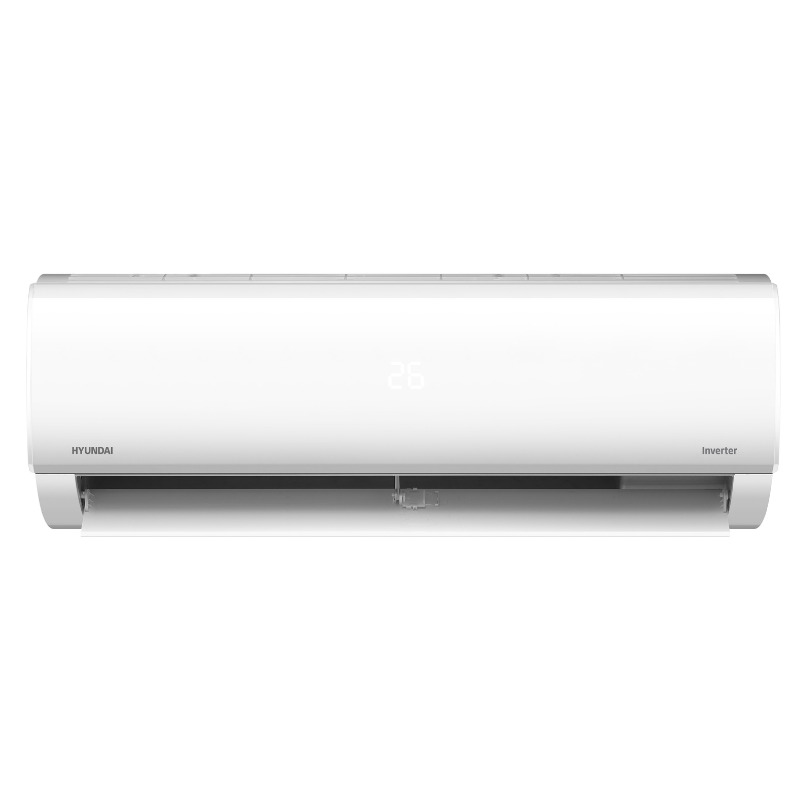

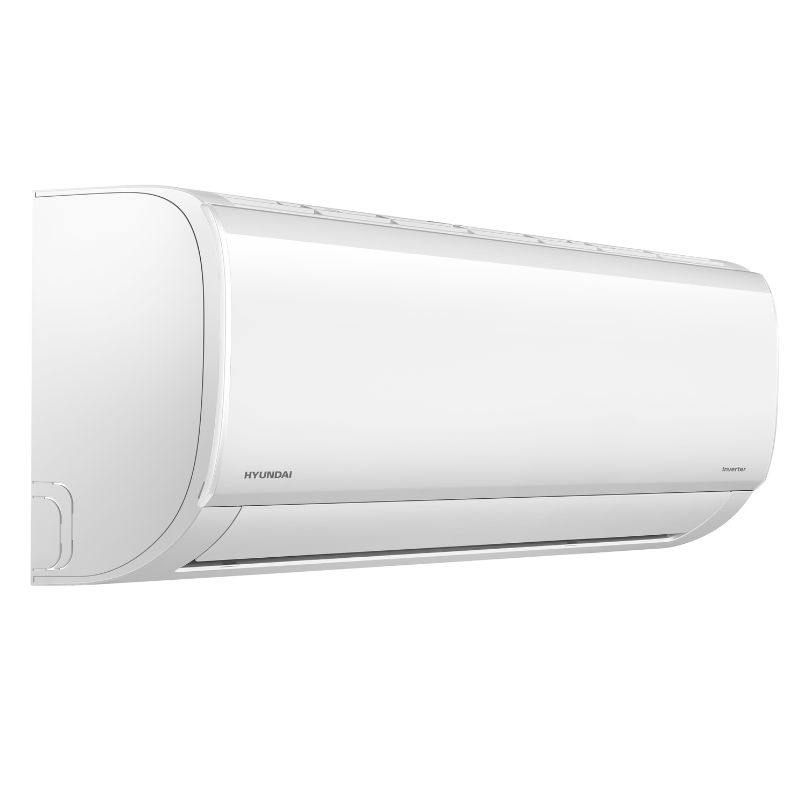

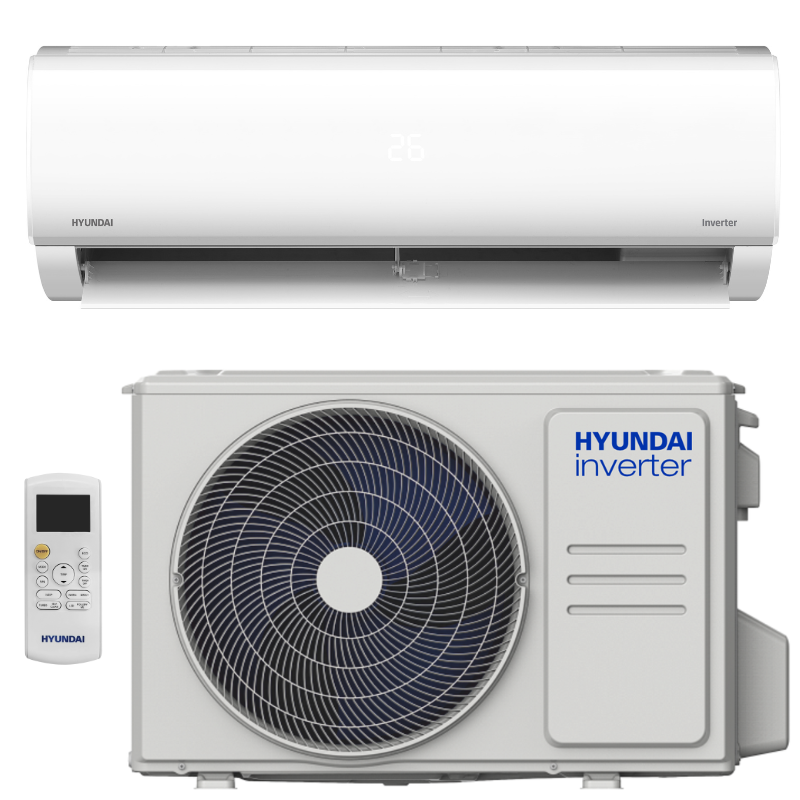

Aer conditionat inverter Hyundai 09HRDN8-QRD0GW 9000 Btu/h A++/A+++ model 2025

Model

HYU-09HRDN8-
QRD0GW

HYU-12HRDN8-
QRD0GW

HYU-18HRFN8-
QRD0GW

HYU-24HRFN8-
QRD0GW

Cod MFG

045640-051

045640-052

045640-053

045640-054

Alimentare electrica

Ph-V-Hz

220V-240V,1Ph,50Hz

220V-240V,1Ph,50Hz

220-240V,1Ph,50Hz

220-240V,1Ph,50Hz

Putere Racire

Capacitate

Btu/h

9000 (3100~11600)

12000 (3800~13400)

18000 (6200~21000)

24000 (7100~27000)

Consum electric racire

W

800 (100~1240)

1320 (83~1600)

1550 (140~2300)

2600 (420~3150)

Amperaj racire

A

3.48 (0.4~5.4)

5.8 (0.8~7.3)

6.7 (0.6~10)

11.5 (1.8~13.8)

EER

3.30

2.66

3.40

2.71

Putere Incalzire

Capacitate

Btu/h

10000 (2800~11500)

13000 (3700~14400)

19000 (4700~23000)

25000 (5500~30000)

Consum electric incalzire

W

930 (120~1200)

1190 (167~1400)

1570 (220~2350)

2400 (300~2750)

Amperaj incalzire

A

4.05 (0.5~5.5)

5.3 (1.4~6.4)

6.8 (0.95~10.2)

11 (1.3~12.2)

COP

3.15

3.20

3.55

3.05

Racire sezoniera

Pdesignc

kW

2.6

3.5

5.2

7.0

SEER

W/W

7.0

6.5

7.4

6.1

Clasa eficienta energetica

A++

A++

A++

A++

Incalzire clima temperata

Pdesignh

kW

2.3

2.8

4.1

4.8

SCOP

W/W

4.1

4.1

4.0

4.0

Clasa eficienta energetica

A+

A+

A+

A+

Temperatura de balans

℃

-7

-7

-7

-7

Incalzire clima mediteraniana

Pdesignh

kW

2.4

3.0

4.4

5.6

SCOP

W/W

5.1

5.2

5.1

5.1

Clasa eficienta energetica

A+++

A+++

A+++

A+++

Temperatura de balans

℃

2

2

2

2

Temperatura limita pentru incalzire

℃

-15

-15

-15

-15

Putere max. consumata

W

2150

2150

2500

3500

Amperaj maxim

A

10

10

13

15.5

Compresor

Model

KSK103D32UEZ31

KSK103D32UEZ31

KSN140D21UFZ

KTM240D43UKT

Tip

ROTARY

ROTARY

ROTARY

Twin-ROTARY

Brand

GMCC

GMCC

GMCC

GMCC

Capacitate

Btu/h

3245

3245

4385

7600

Putere consumata

W

850

850

1140

2045

Amperaj in functionare

A

5.70

5.70

7.50

9.30

Refrigerant oil/oil charge

ml

ESTER OIL VG74 280

ESTER OIL VG74 280

VG74 440

ESTER OIL VG74  620

Motor ventilator UI

Model

ZKFP-30-8-357L

ZKFP-30-8-357L

ZKFP-30-8-3

ZKFP-58-8-1-5

Putere

W

35

35

36.0

58.0

Turatie(Hi/Mi/Lo)

r/min

1100/900/750

1130/950/750

1130 / 900 / 800

1130 / 900 / 800

Schimbator UI

a.Numar spirale

2

2

2.0

2.0

b.Pas tub(a)x pas linie(b)

mm

19.5x11.6

19.5x11.6

21x13.37

21x13.37

c.Spatiere

mm

1.2

1.2

1.2

1.3

d.Terminatie

Aluminiu hidrofil

Aluminiu hidrofil

Aluminiu hidrofil

Aluminiu hidrofil

e.Diametru tub

mm

Φ5, tub canelat

Φ5, tub canelat

Φ7, tub canelat

Φ7, tub canelat

f.Lungime spira x inaltime x latime

mm

510x78x23.2+510x97.5x23.2+510x78x23.2

595x78x23.2+595x117x23.2+595x78x23.2

750x189x26.74+750x105x26.74

780x210x26.74+780x105x26.74

g. Numar de circuite

3

4

3

4

Debit aer UI (Hi/Mi/Lo)

m3/h

435/333/259

530/430/310

840/680/540

980/817/662

Presiune sonora UI  (Hi/Mi/Lo/Si)

dB(A)

37/32/25/21.5

39.5/35.5/25/21.5

42.5/36/26/20

45/40.5/36/29.5

Putere sonora UI (Hi)

dB(A)

53

54

56

59

UI

Dimensiuni(W*D*H)

mm

715x194x285

805x194x285

957x213x302

1040x220x327

Ambalaj   (W*D*H)

mm

780x270x365

870x270x365

1035x295x385

1120x405x315

Greutate Neta/Bruta

Kg

6.7/8.8

7.3/9.5

10/13

12.3/15.8

Motor ventilator UE

Model

ZKFN-25-10-5L

ZKFN-25-10-5L

ZKFN-34-10-1-3

ZKFN-80-8-3

Turatie

r/min

780/600

780/600

740/650

830/700/550

Schimbator UI

a.Numar spirale

1

1

2.0

1.6

b.Pas tub(a)x pas linie(b)

mm

18x17.3

18x17.3

21x22

21x22

c.Spatiere

mm

1.3

1.3

1.3

1.3

d.Terminatie

Aluminiu hidrofil

Aluminiu hidrofil

Aluminiu hidrofil

Aluminiu hidrofil

e.Diametru tub

mm

Φ5, tub canelat

Φ5, tub canelat

Φ7, tub canelat

Φ7, tub canelat

f.Lungime spira x inaltime x latime

mm

745x468x17.3

745x468x17.3

860*504*44

900*609*22+540*609*22

g. Numar de circuite

3

3

4

5

Debit aer UE

m3/h

1750

1750

2100

3500

Nivel presiune sonora UE

dB(A)

55

55

56

59

Putere sonora UE

dB(A)

62

64

63

67

UE

Dimensiuni (W*D*H)

mm

720x270x495

720x270x495

805x330x554

890x342x673

Ambalaj  (W*D*H)

mm

835x300x540

835x300x540

915x370x615

995x398x740

Greutate Neta/Bruta

Kg

21/22.8

21/22.8

32.7/35.4

42.9/45.9

Refrigerent

Tip

R32

R32

R32

R32

GWP

675

675

675

675

Greutate incarcatura

Kg

0.47

0.52

1.08

1.42

Presiune de proiect

MPa

4.3/1.7

4.3/1.7

4.3/1.7

4.3/1.7

Tevi refrigerent

Diam tevi refrigerent lichid/gaz

mm/inch

6.35mm(1/4in)/9.52mm(3/8in)

6.35mm(1/4in)/9.52mm(3/8in)

6.35mm(1/4in)/12.7mm(1/2in)

9.52mm(3/8in)/15.9mm(5/8in)

Lungime maxima traseu teava

m

25

25

30

50

Diferenta max. de nivel

m

10

10

20

25

Cablu conectare

1.5x5//

1.5x5//

1.5x5//

2.5x5//

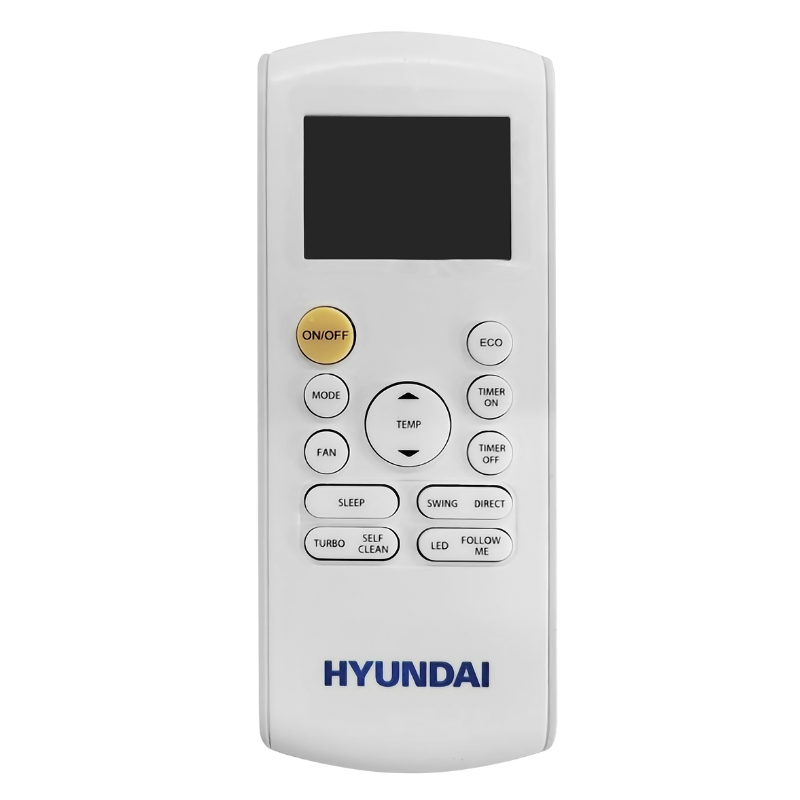

Control temperatura

Telecomanda

Telecomanda

Telecomanda

Telecomanda

Temperaturi de lucru

Intern (racire/incalzire)

℃

17～32/0～30

17～32/0～30

17～32/0～30

17～32/0～30

Exterior (racire/incalzire)

℃

-15～50 / -20～24

-15～50 / -20～24

-15～50 / -20～24

 -15～50 / -20～24

Suprafata aplicatie

minim maxim

m²

12～18

16～23

24～35

32～47
